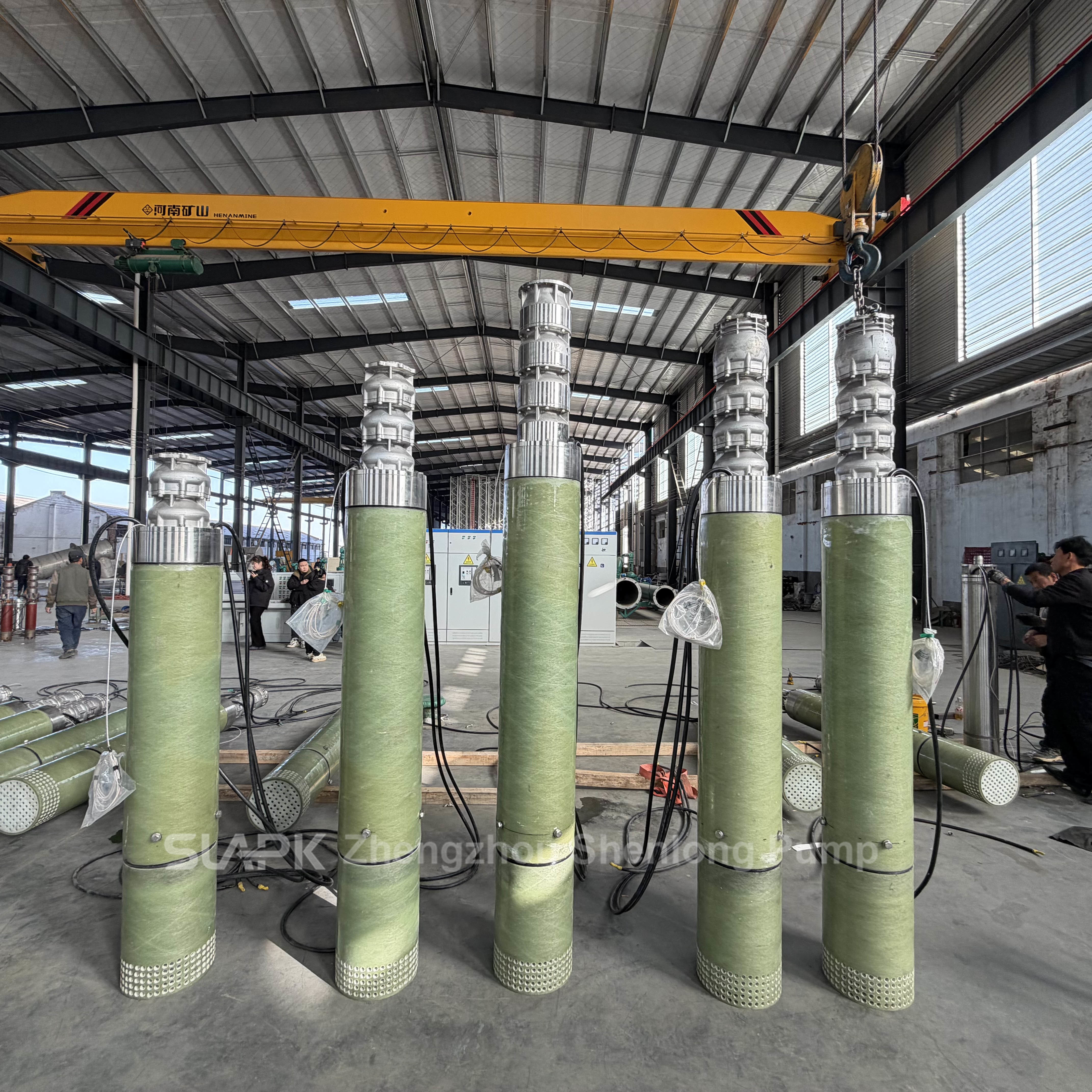

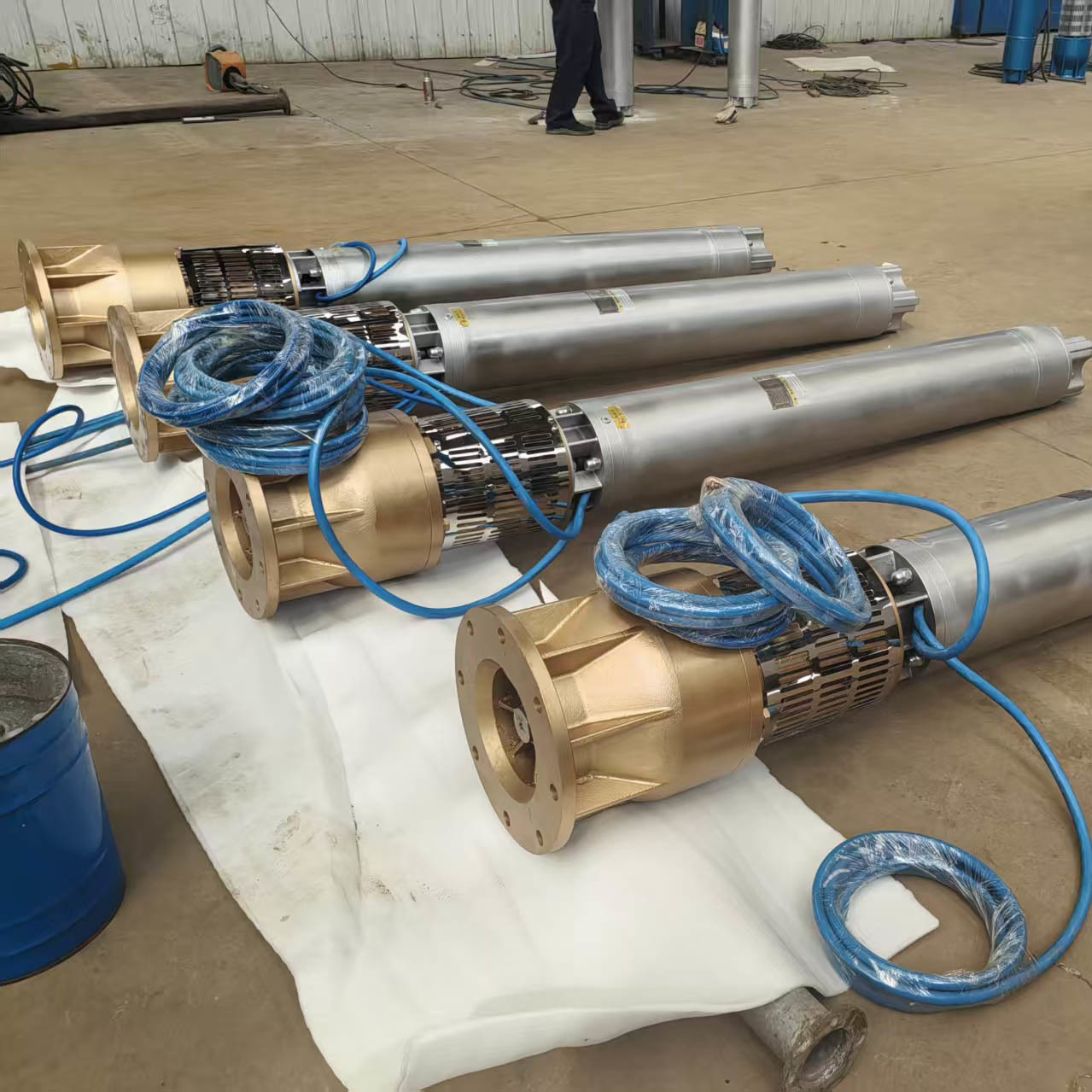

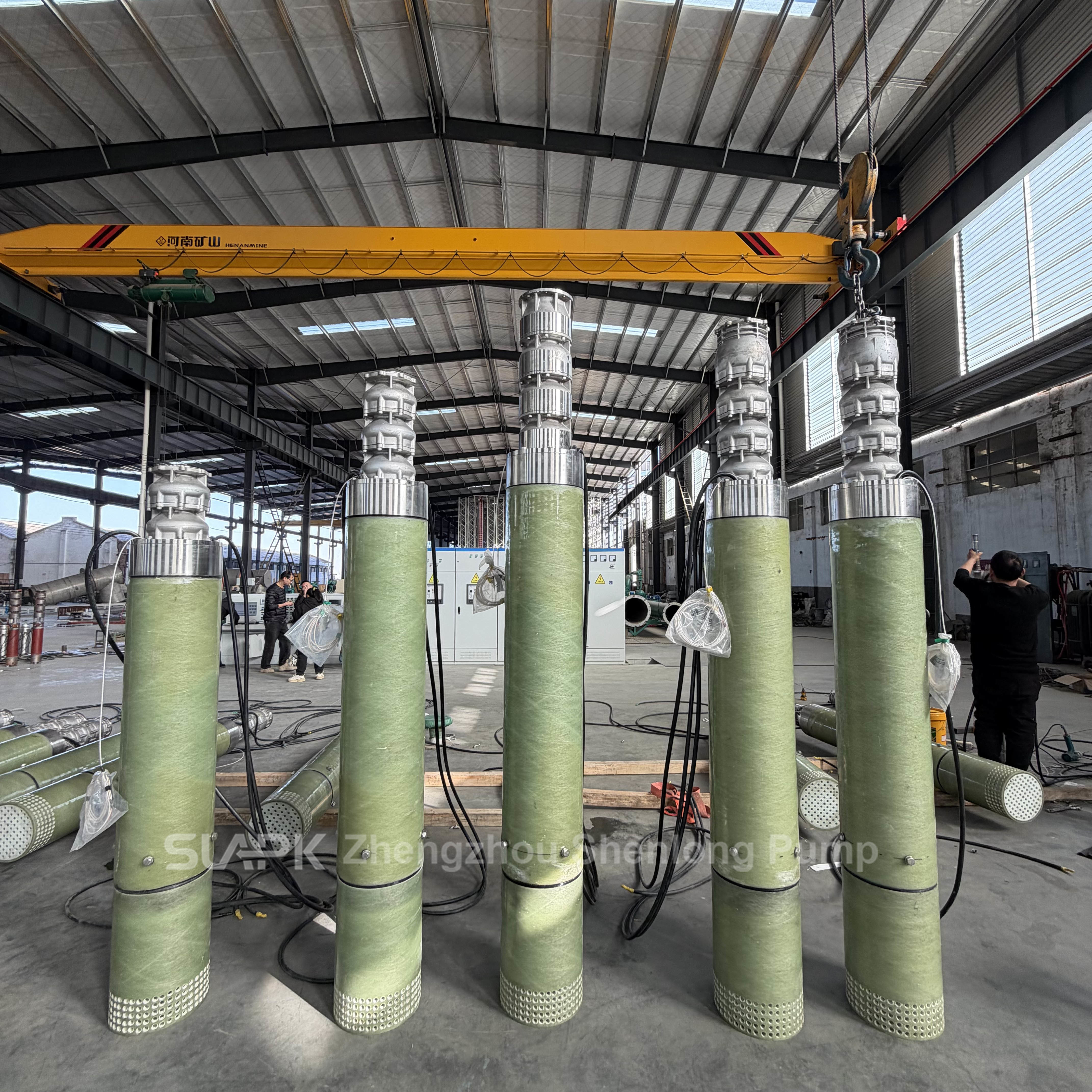

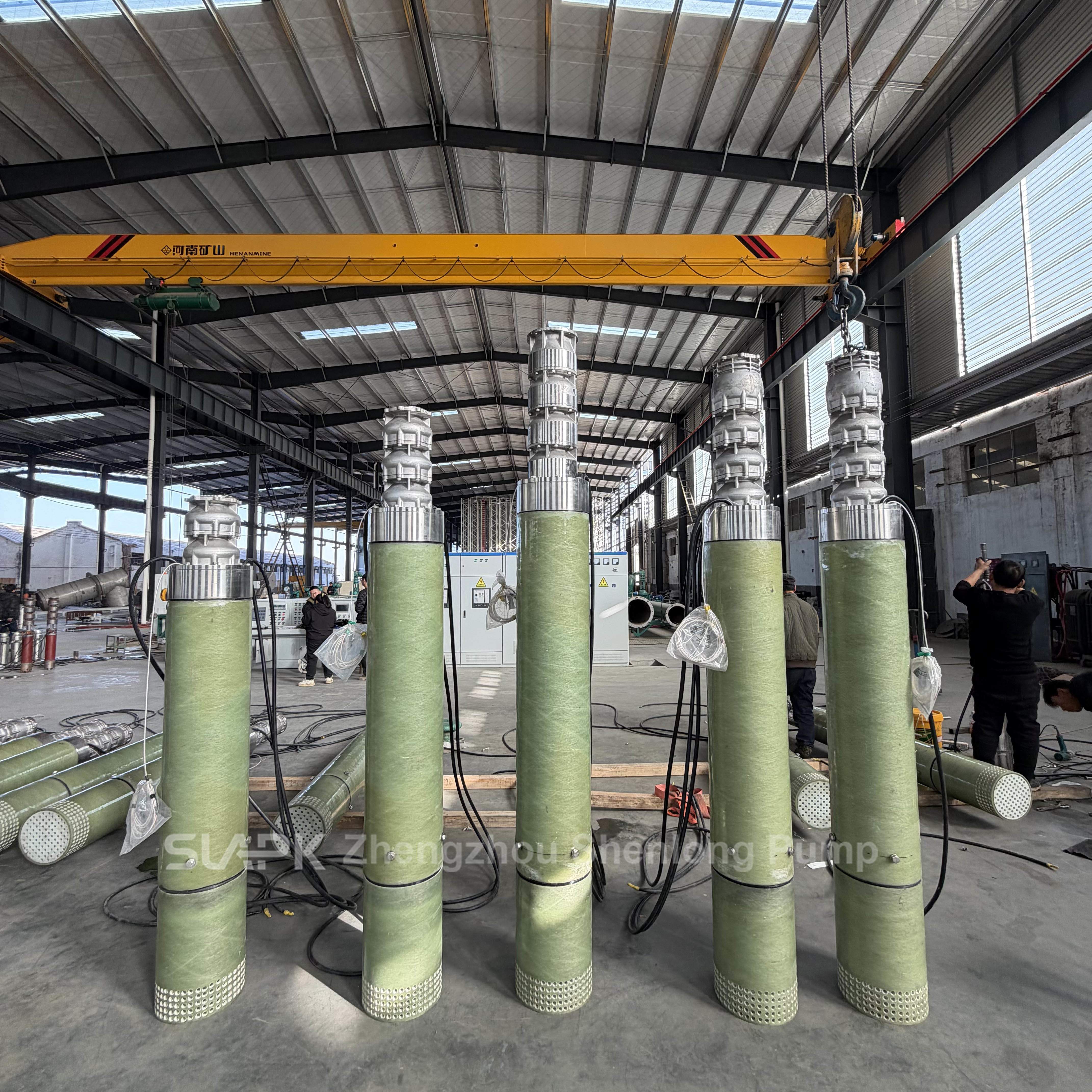

Industrial Submersible Seawater Pump

Engineered for Long-Term Reliability in High-Chloride Environments

Seawater is one of the most destructive industrial fluids. High chloride concentration, oxygen exposure, and continuous wet-dry cycling create an aggressive corrosion environment that rapidly destroys conventional pumping equipment.

If a pump fails in a marine or seafood facility, the damage is rarely limited to the equipment itself. Production downtime, system contamination, emergency replacement costs, and maintenance labor multiply the financial impact.

This submersible seawater pump is designed to prevent that scenario.

The Engineering Reality of Saltwater Operation

Saltwater attacks equipment in three primary ways:

1. Pitting corrosion on stainless steel surfaces

2. Crevice corrosion at bolted connections and sealing interfaces

3. Electrochemical corrosion between dissimilar metal components

A freshwater-rated pump placed in seawater will eventually fail — even if it looks similar externally.

This pump is designed from the inside out specifically for saline conditions.

Structural and Material Architecture

Instead of offering a single fixed material configuration, this pump allows engineering-level material selection:

• 304 / 316 / 316L Stainless Steel

• Duplex Stainless Steel

• 904L High Alloy Stainless Steel

Why Material Selection Matters

• 316/316L provides reliable chloride resistance for moderate marine exposure.

• Duplex stainless steel offers significantly higher resistance to localized corrosion and improved mechanical strength.

• 904L is suited for extreme salinity or chemically aggressive seawater environments.

This flexibility allows project engineers to match material performance to actual operating conditions — reducing overspending while avoiding premature failure.

Performance Capability Across Industrial Applications

This submersible seawater pump is available across a wide operational spectrum:

• Flow capacity up to 2500 m³/h

• Head capability up to 465 meters

• Power range from 7.5 kW to 300 kW

• 50Hz and 60Hz compatibility

• Voltage options between 380V and 480V

• Vertical or horizontal installation

This range makes it suitable for both mid-scale facilities and heavy-duty infrastructure projects.

Designed for Continuous Operation

Marine environments do not allow frequent shutdowns. Therefore, reliability features are built into the system:

• IP68 fully sealed submersible motor

• Reinforced mechanical seal system

• Corrosion-resistant fasteners and structural components

• Multi-stage impeller configuration for stable high-pressure output

• Optional integration with automated control systems

The goal is operational continuity — not short-term cost reduction.

Application Environments

Seafood Processing Facilities

Ensures stable saltwater transfer for washing, cooling, and production processes.

Aquaculture Operations

Supports circulation systems, water exchange, and oxygen supply infrastructure.

Offshore and Coastal Installations

Used in intake systems, cooling loops, and marine pumping applications.

Desalination Pre-Treatment

Reliable seawater intake pumping prior to membrane processing systems.

Total Cost of Ownership Perspective

When evaluating marine pumping systems, the purchase price is rarely the primary cost driver. Maintenance frequency, spare part replacement, labor hours, and production interruption define the true expense over time.

A corrosion-resistant, properly engineered seawater pump reduces:

• Seal replacement frequency

• Motor failure risk

• Structural corrosion damage

• Unplanned operational downtime

The result is a lower lifecycle cost — even if the initial specification is higher than standard pumps.

Built for Projects, Not Retail Markets

This pump supports ODM and OEM customization, allowing adaptation to:

• Specific project head and flow requirements

• Material compliance standards

• Regional electrical standards

• Custom mounting or structural integration needs

It is intended for industrial procurement, engineering contractors, and system integrators — not general consumer use.

Final Positioning

This is not simply a pump that can operate in seawater.
It is a pumping system engineered specifically for high-salinity, high-demand environments where durability and stability directly impact operational revenue.

For buyers who prioritize long-term reliability over short-term savings, this submersible seawater pump provides structural integrity, corrosion resistance, and industrial-grade performance in one integrated solution.
